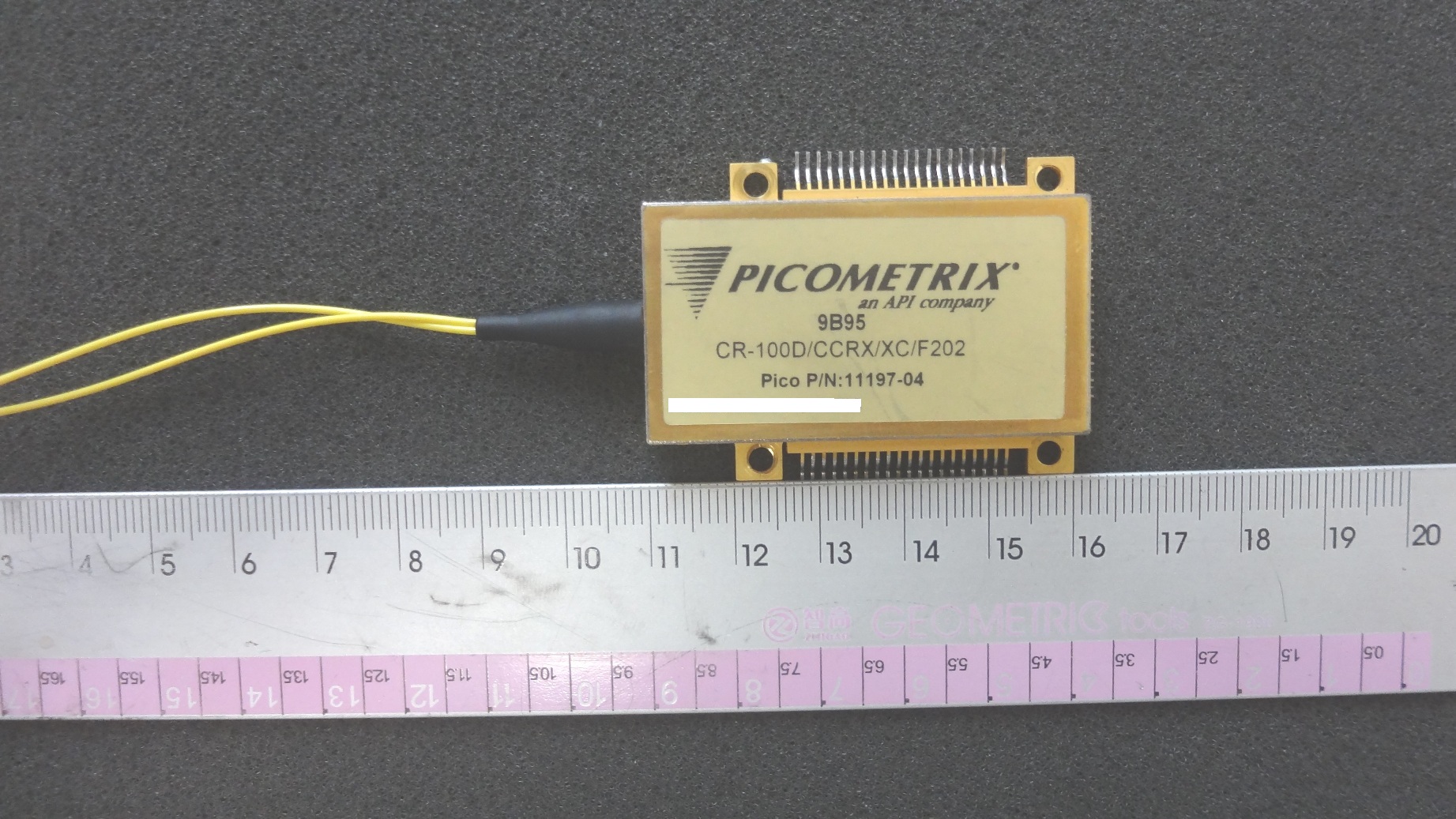

Picometrix夸耀100Gbs速率ICR集成相干接收機(jī)DP-DQPSK型號CR-100D
參數(shù)可參考新飛通同類產(chǎn)品：
https://www.neophotonics.com/product/type-1-icr/
Overview
NeoPhotonics Type 1 Integrated Coherent Receiver provides advanced
demodulation to analyze the state-of-polarization and optical phase of
a phase-modulated signal relative to an externally-supplied optical reference.
This enables the recovery of the phase-polarization constellation of 100 G/s
Dual Polarization Quadrature Phase Shift Keyed (DP-DQPSK) format signals
as well as 8-QAM (Quadrature Amplitude Modulation) and 200G 16-QAM
format signals.
The ICR incorporates four sets of high-sensitivity balanced photodiodes with
four differential linear amplifiers to provide four output channels at 32 GBaud and above.
The Coherent Receiver is compliant with Optical Internetworking Forum standard
“Implementation Agreement for Integrated Dual Polarization Intradyne Coherent Receivers”
OIF-DPC-RX-01.0.
Features and Benefits
· Compliant with OIF "Implementation Agreement for
Integrated Dual Polarization Intradyne Coherent Receivers" OIF-DPC-RX-01.0
· 50x37x6mm
· C-band, L-band, A-band, Up to 32 Gbaud
· High performance – very high responsivity, high CMRR
· Integrated VOA and MPD options available
· -5°C to 80°C operation
· Telcordia GR-1221-Core compliant
· Telcordia GR-468-Core compliant
>
