Finisar 40G速率 菲尼薩高速光電探測(cè)器 MPRV1331A 帶光纖
帶光纖尾纖輸入,速率43Gbps, PIN-TIA探測(cè)器, 典型靈敏度-10dBm@1550nm, -7dBm@1310nm;
2100V/W轉(zhuǎn)換增益, 輸出限幅, 差分?jǐn)[幅最大可到700mV, 可用于微波光子通信; 差分AC耦合射頻信號(hào)輸出, 雙GPPO口;
MPRV1331A
MPRV1332A
PT-40/AC
FU-397SPP

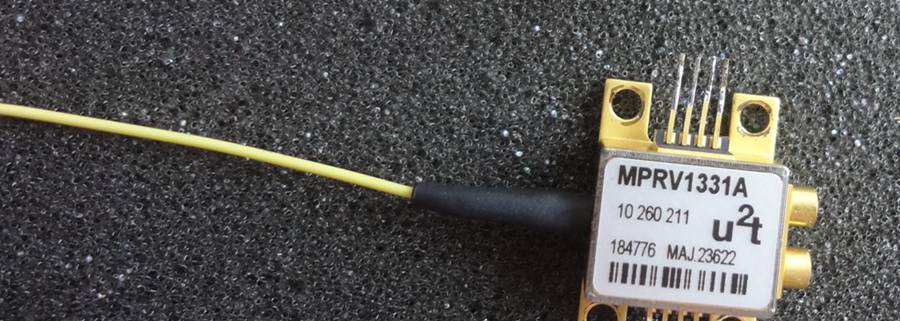

The MPRV1331A is a differential photoreceiver module with very high differential conversion
gain of typ. 2100 V/W and a bandwidth of 31 GHz.
The photoreceiver module MPRV1331A contains a waveguide-integrated PIN-photodiode (PD)
and a transimpedance amplifier (TIA) with limiting output buffer.
An integrated feedback loop optimizes the performance in the frequency and/or time domain with
respect to different optical input power.
Due to the limiting output buffer the differential output voltage swing is limited to 700 mV.
Incorporated blocking capacitors enable AC output coupling. Wavelength support of 1310 and 1550 nm.
