Finisar M2130CB FG EDFA 固定增益摻鉺光纖放大器 20dBm輸出功率C頻段OFA2A-HMT/S20LG

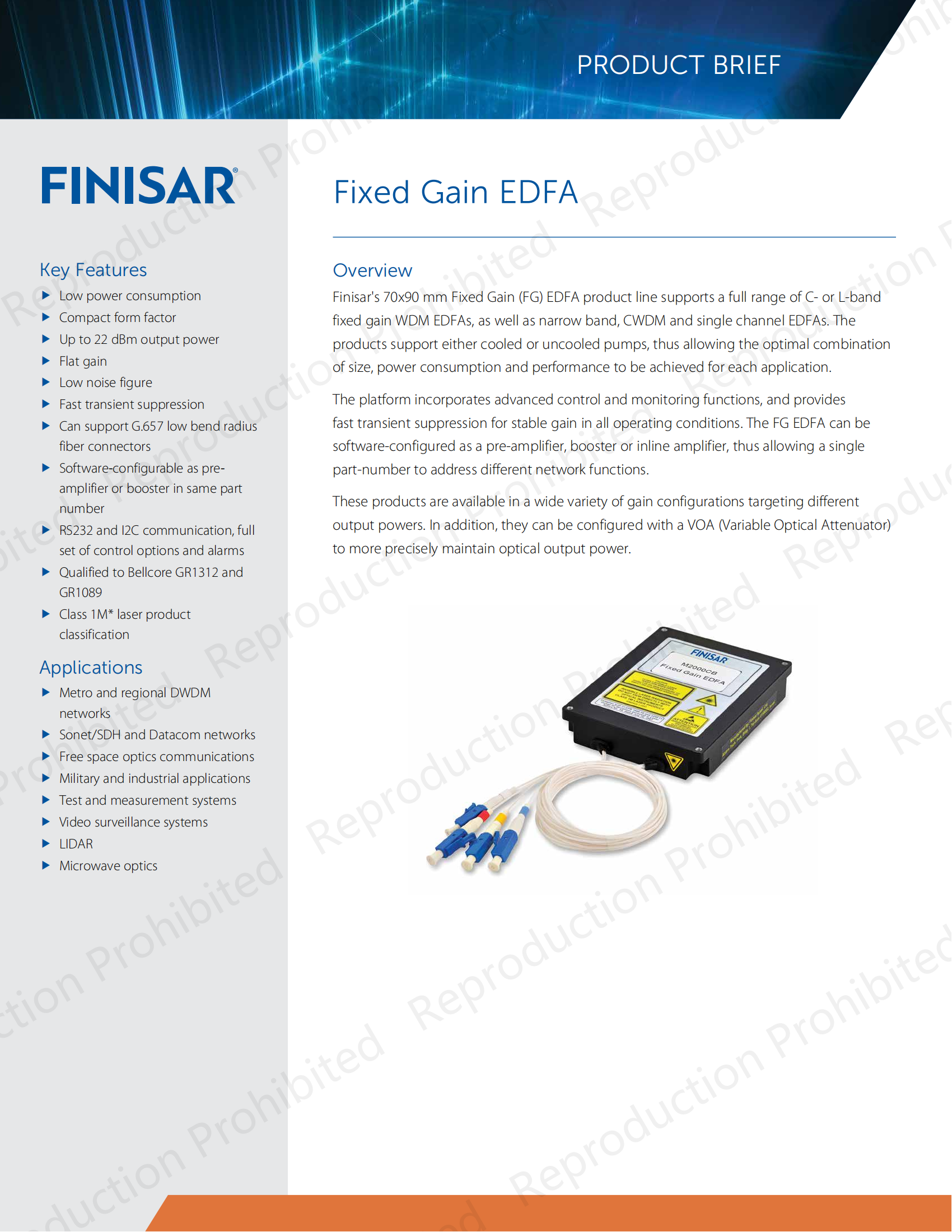

Overview
Finisar's 70x90 mm Fixed Gain (FG) EDFA product line supports a full range of C- or L-band fixed gain WDM EDFAs, as well as narrow band, CWDM and single channel EDFAs. The products support either cooled or uncooled pumps, thus allowing the optimal combination of size, power consumption and performance to be achieved for each application.
The platform incorporates advanced control and monitoring functions, and provides fast transient suppression for stable gain in all operating conditions. The FG EDFA can be software-configured as a pre-amplifier, booster or inline amplifier, thus allowing a single part-number to address different network functions.
These products are available in a wide variety of gain configurations targeting different output powers. In addition, they can be configured with a VOA (Variable Optical Attenuator) to more precisely maintain optical output power.
概述
Finisar的70x90毫米固定增益（FG）EDFA產品線支持全系列C或L波段固定增益WDM EDFA，以及窄帶、CWDM和單通道EDFA。該產品支持冷卻或非冷卻泵，從而實現每種應用的尺寸、功耗和性能的最佳組合。
該平臺集成了先進的控制和監測功能，并在所有操作條件下為穩定增益提供快速瞬態抑制。FG-EDFA可以是配置為前置放大器、升壓器或內聯放大器的軟件，因此允許使用單個零件號來處理不同的網絡功能。
這些產品有多種針對不同輸出功率的增益配置。此外，它們可以配置VOA（可變光衰減器），以更精確地保持光輸出功率。
